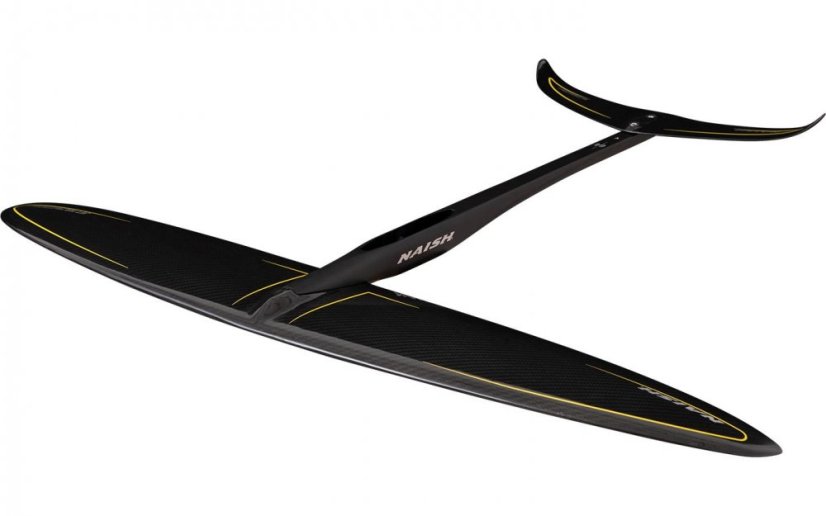

Hydrofoil S27 NAISH Jet HA Semi-complete

Hydrofoil S27 NAISH Jet HA Semi-complete

Hydrofoil S27 NAISH Jet HA Semi-complete

star 1star 2star 3star 4star 5 (1) Rating value is 5 of 5
NAISH SURF / WING / PUMPING / WAKE More
Product code: S27F-SH Shipping and Payment
Product is no longer available
NAISH SURF / WING / PUMPING / WAKE More
Product code: S27F-SH Shipping and Payment

Substitution product

Designed for advanced and semi-advanced foilers looking to push their performance levels in surf, SUP, Wing-surfer, and downwind foiling. These wings feature high aspect ratio planforms and proprietary thin section profiles — the result is maximum glide, excellent pumping, and improved top speed while still maintaining the excellent turning and control that defines the Jet range. To complement the high-end performance of these new wings, the complete foils feature a new high aspect stabilizer that emphasizes pumping ability and glide. Designed with a thinner profile and higher aspect ratio, they support the higher speed of the HA front wings while giving excellent response to rider input.



Recommended grease for completing the hydrofoil (to be purchased separately).

combination beginner advanced   expert
wing 55, 65 65, 75, 85 95, 105
surf 55 65, 75 65, 75
wake 85, 95 85, 95 85, 95
windsurf 55, 65 75, 85, 95 95, 105
pumping 75 75 75



Set contains:

  • Front Wing
  • Stabilizer
  • 64 cm Fuselage
  • 5x 20 mm M6 / 4x 30 mm M6 + T Nuts

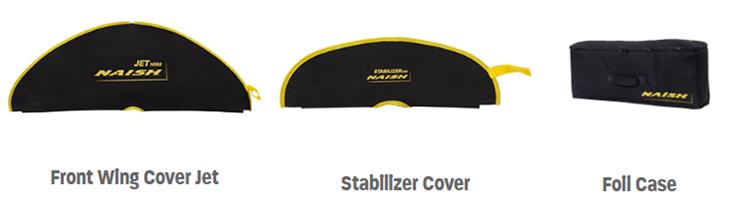

  • EVA Wing Covers
  • Carry Case





Front Wing Aspect Ratio Wingspan Projected Surface Area Stabilizer Fuselage
Jet HA 1040 7.9 87 cm 1040 cm² Jet HA 220 64 cm
Jet HA 1240 7.2 94.5 cm 1240 cm² Jet HA 280 64 cm
Jet HA 1400 6.9 98 cm 1400 cm² Jet HA 280 64 cm
Jet HA 1800 5.6 100 cm 1800 cm² Jet HA 310 64 cm
Jet HA 2140 5.4 107.5 cm 2140 cm² Jet HA 310 64 cm





Tehnology:

  • 100% Pre-preg 3K High Gloss Carbon Fiber Front Wing and Stabilizer
  • CNC Precision Cut Lightweight Aluminum Fuselage with Corrosion Resistant Stainless Steel M6 Helicoils for the Front Wing and Stabilizer Connection
  • Stainless Steel M6 Torx T30 Hardware for all Screwed Connections
